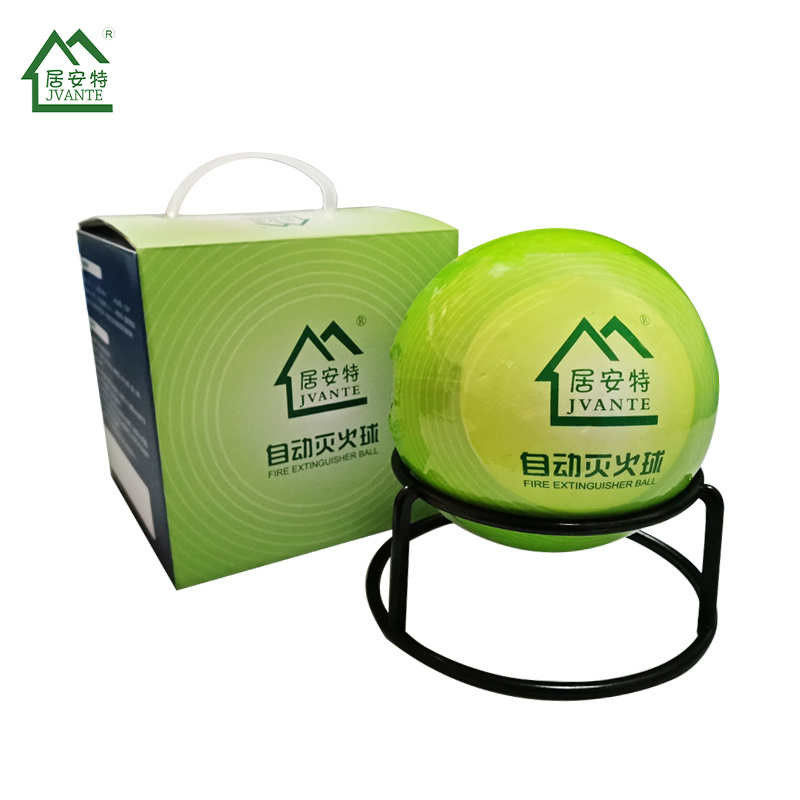

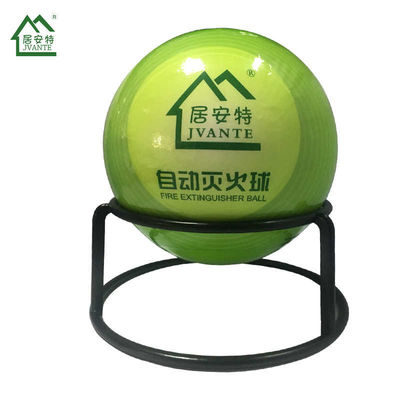

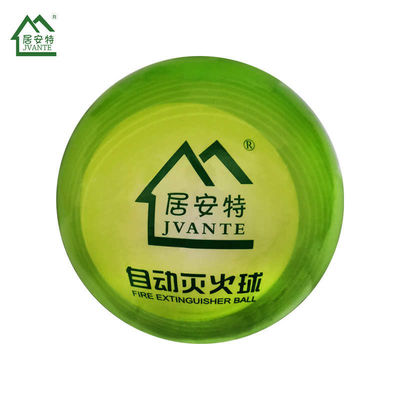

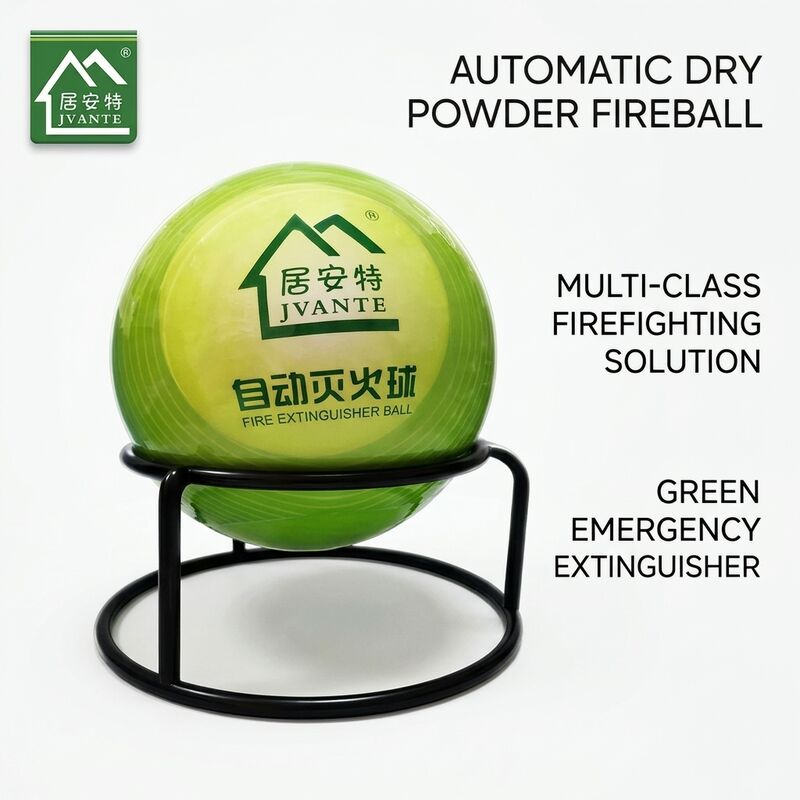

Dry powder fire ball 1.2kg spherical fire extinguisher 150mm

Dry powder automatic fire extinguishing device 1.2kg spherical fire extinguisher

Dry powder fire ball

Fire extinguishing principle

The fire ball device is composed of a foam shell, a dry powder driving device and ABC dry powder extinguishing agent. When the external lead is ignited, the driving medium is activated, the inside of the shell is rapidly expanded and broken, and the dry powder fire extinguishing agent is rapidly sprayed into the protected area and quickly diffused around, forming a state of full flooding fire extinguishing, and the flame is extinguished under the dual action of physical and chemical dry powder fire extinguishing agent.

argument

Operating procedure

There are two ways of operation of the fire ball, first: in some areas where fire may occur, the dry powder fire ball device fixed frame is first placed in the designated position, when the fire occurs, the flame ignite the fuse, the dry powder fire ball device will start within 3S, so as to quickly extinguish the early fire. Second: When a fire occurs in a certain area, whether it is an old man or a child, the fire ball can be thrown to the designated area, and once the flame contacts the lead, it will be quickly ignited within 3 seconds, so as to quickly extinguish the fire.

Maintenance instructions

Maintenance instructions for dry powder fire ball device

(1) The shell of the fire ball device should be regularly removed according to the environmental condition of dust and stolen goods, and the damage should be replaced in time.

(2) The dry powder does not need to carry out quality inspection on the dry powder during the validity period.

(3) The fire extinguishing device is maintenance-free, and the fire extinguishing device is valid for five years.
