Product Details:
|
| Weight: | 250g | Dimensions: | Length 70mmx Width 35mmx Height 400mm |
|---|---|---|---|
| Display: | LCD Screen | Repeatability: | <1% |
| Case Material: | ABS Material | Supported Sensors: | Catalytic Combustion Sensor, Electrochemical Sensor (depending On Sensor) |
| Protection Class: | IP65 | Storage Environment: | -40C°~60C° |
| Detection Gas: | Combustible Gas, Oxygen, Hydrogen Sulfide, Carbon Monoxide (can Be Customized) | Sampling Method: | Diffuse |
| Indication Error: | ≤±5%FS | Response Time: | T<30s (depending On Sensor) |
| Recovery Time: | ≤30s (depending On Sensor) | Battery: | Lithium Battery Capacity 1800mAh |
| Alarm Mode: | Sound And Light, Light, Vibration | Alarm Settings: Combustible: | Low Alarm Value 20%LEL High Alarm Value 50%LEL |
| Alarm Point Setting: Oxygen: | Low Alarm 19.5%VOL High Alarm 23.5%VOL | Alarm Point Setting: Hydrogen Sulfide: | Low Alarm Value 10ppm High Alarm Value 35ppm |
| Alarm Point Setting: Carbon Monoxide: | Low Alarm Value 50ppm High Alarm Value 150ppm | ||
| High Light: | LCD Screen carbon monoxide detector,Carbon monoxide alarm IP65,ABS carbon monoxide detector |
||

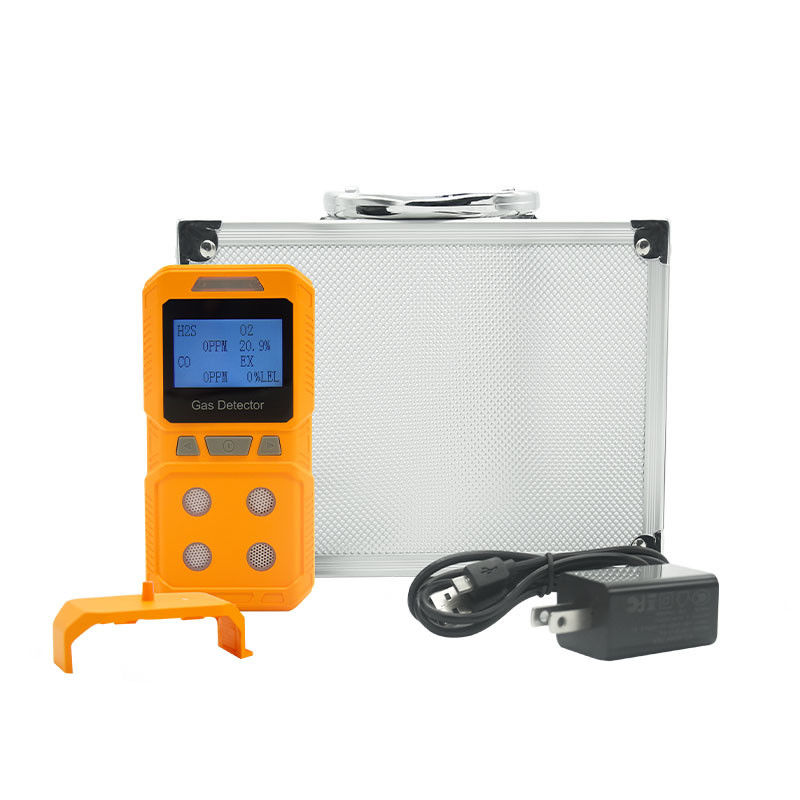

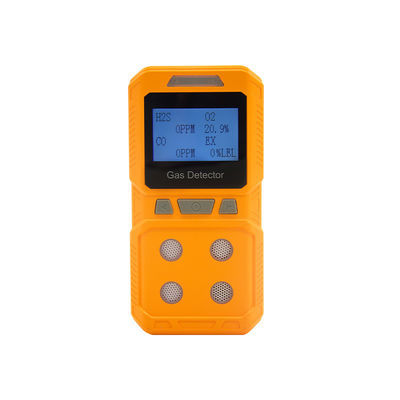

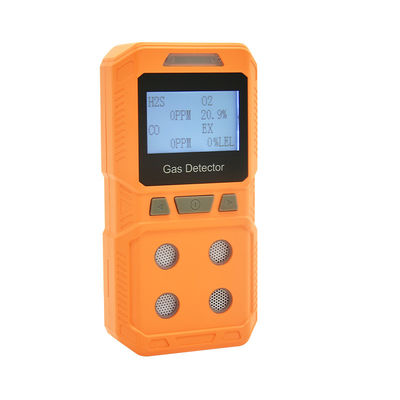

Oxygen, combustible, hydrogen sulfide, carbon monoxide four-in-one gas detector
| Parameter | Detail |
|---|---|
| Calibration | Two-point Calibration |
| Ambient pressure | Normal Atmospheric Pressure (101.325kPa) |
| Alarm point setting | Combustible: Low Alarm Value 20%LEL, High Alarm Value 50%LEL; Oxygen: Low Alarm Value 19.5%VOL, High Alarm Value 23.5%VOL; Hydrogen Sulfide: Low Alarm Value 10ppm, High Alarm Value 35ppm; Carbon Monoxide Low Alarm Value 50ppm, High Alarm Value 150ppm; |
| Case material | ABS Material |
| Detection principle | Catalytic Combustion Principle, Electrochemical Principle |
| Indication error | ≤±5%FS |
| Response time | T<30s (depending On Sensor) |
| Charger | USB High Current 5V1A Fast Charger Compatible With Universal USB Phone Charger |
| Product model | ABH841 |
| Data record | Not Supported |
The ABH841 is equipped with a Battery Capacity 1800mAh, so it can be used for more than 10 hours once it is fully charged. It also has USB High Current 5V1A Fast Charger Compatible With Universal USB Phone Charger for easy charging. Additionally, it is lightweight and only weighs 250g.
The ABH841 is designed to detect fire and smoke through Catalytic Combustion Principle and Electrochemical Principle. The Catalytic Combustion Sensor and Electrochemical Sensor are supported depending on the sensors. This device will alert you to any potential danger before it becomes too serious.
The Fire Smoke Detector will be packaged and shipped as follows:
Q1: What is the brand name of the Fire Smoke Detector?
A1: The brand name of the Fire Smoke Detector is China International AI Expo.
Q2: What is the model number of the Fire Smoke Detector?
A2: The model number of the Fire Smoke Detector is ABH841.
Q3: Where is the Fire Smoke Detector manufactured?
A3: The Fire Smoke Detector is manufactured in the Chinese mainland.
Q4: What features does the Fire Smoke Detector have?
A4: The Fire Smoke Detector has a fast response time, a wide detection range, and low power consumption.
Q5: How do I install the Fire Smoke Detector?
A5: You should read the user manual carefully for installation instructions. It is recommended to install the Fire Smoke Detector in a central location in the room. Make sure the detector is mounted properly and securely to the ceiling or wall.
